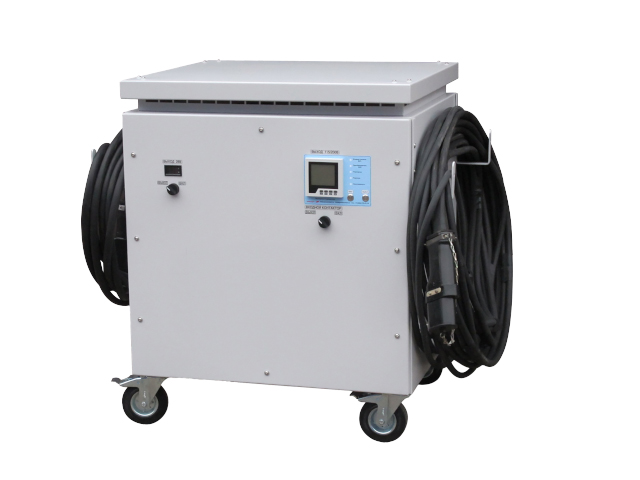

FORCESTART GPU Combo units are intended to supply power to the on-board electrical equipment of civilian,military aircrafts and helicopters during pre-flight checks, repair , installation, routine maintenance, trainings ,tests of aviation equipment and launch aircrafts or helicopters engines.
Our GPU Combo units have two types of independent outputs: one with DC current of 28 V, and a second one with AC current of 400 Hz. All channels are totally independent and can be used separately or simultaneously. Also our GPU Combo units can be either single channel with 28 VDC or dual channel with 28/56 VDC function.
| Input voltage, V | 380 +/-10% |
| Input frequency, Hz | 50 - 60 |
| Input current, A | 92 - 172 |
| AC Сhannel | |
|---|---|
| Output frequency, Hz | 400 +/- 0.001% |
| Output voltage,V | 115/200 |
| Output current, A | 87 - 260 |
| Overload | 2 times |
| Output power, kW | 30 - 90 |
| Max. ripple at the output, % | 1.5 |
| Monitoring devices | Digital display |
| DC Сhannel | |
| Output voltage,V | 28 |
| Output current, A | 1200 |
| Peak current, A | Up to 3500 |
| Output power, kW | 34 |
| Monitoring devices | voltmeter, ammeter |
| Max. ripple at the output, mV | 150 |
| Operating temperature | -40 - +50 |
| Dimensions, mm | 1700*740*780 |
| Weight, kg | 650 |
