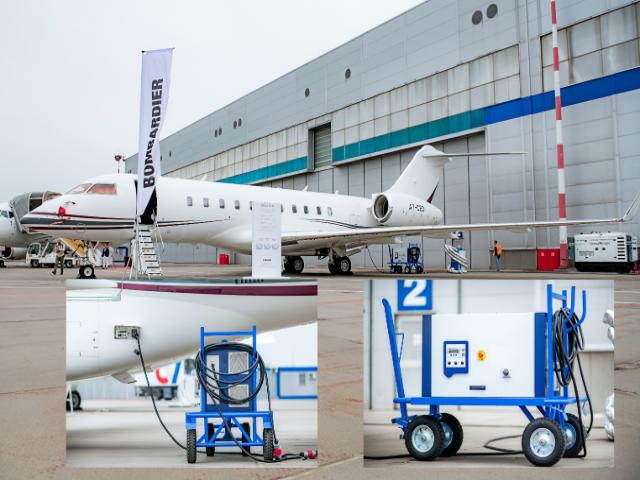

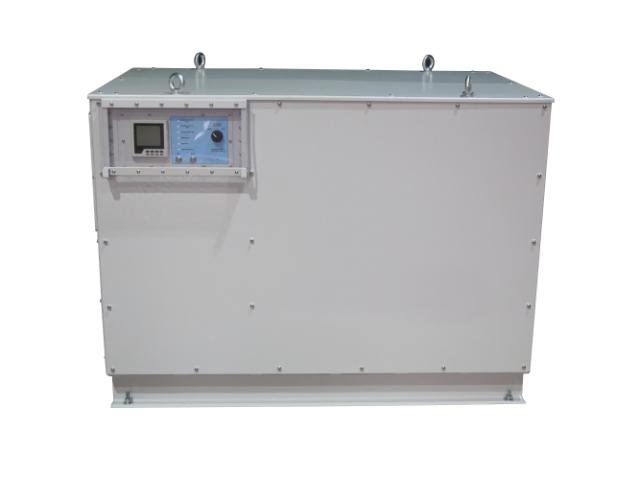

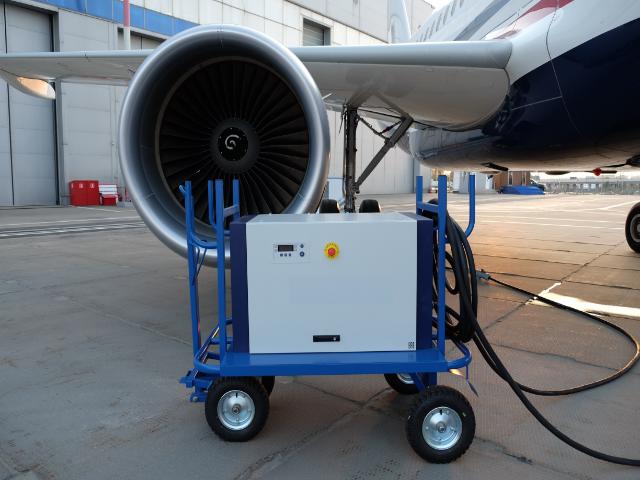

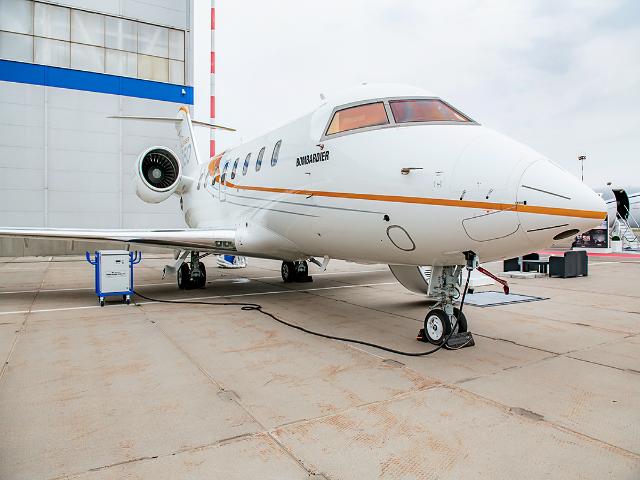

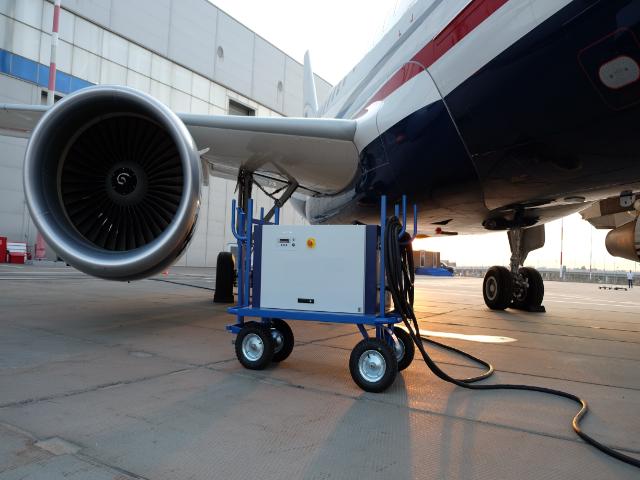

Our FORCESTART GPU's are developed for the ground servicing of all civilian,military aircraft types and helicopters with AC current and 400 Hz frequency. The FS airfield GPUs guarantees high quality, interference-free power supply with maximum reliability, reducing the amount of exhaust fumes and noise level within the airport area. Our GPUs are designed to power on-board electrical equipment on the ground to help you do all necessary pre-flight maintenance and launch aircrafts or helicopters engines.
| Input voltage, V | 380 +/-10% |
| Input frequency, Hz | 50 - 60 |
| Input current, A | 60 - 140 |
| Output frequency, Hz | 400 +/- 0.001% |
| Output voltage,V | From 115/200 to 127/220 |
| Output current, A | 87 - 260 |
| Overload | 2 times |
| Output power, kVA | 30 - 90 |
| Max. ripple at the output, % | 1.5 |
| Monitoring devices | Digital display |
| Operating temperature | -40 - +50 |
| Dimensions, mm | 665*560*830 up to 1400*740*780 |
| Weight, kg | 320 up to 470 |
