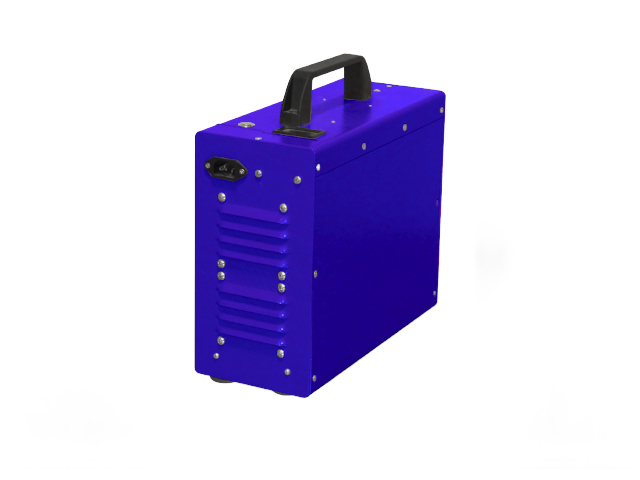

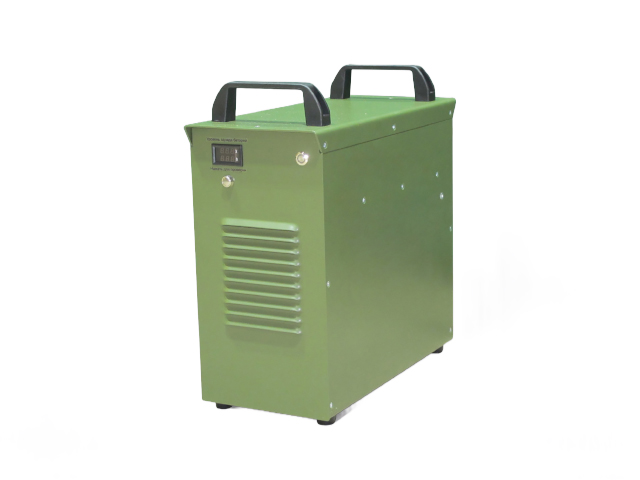

DC START POWER SUPPLY

Our 28VDC FORCESTART rectifiers are continuous DC power supply units and autonomous power supply units that supply DC power to civilian , military aircrafts,helicopters and drones. Designed to power on-board electrical equipment on the ground indoors and outdoors and start engines of aircrafts, helicopters and drones.


Enquiry Now
Specification
Input voltage( V) 220 +/-15 % or 380 +/-10%
Input frequency(Hz) 50 - 60
Input current (A) 6 - 48
Output voltage (V) 24/28
Output current (A) 40 - 1200
Max. output current (A) 42 - 1400
Peak current (A) Up to 3500
Output power (kW) 1,0 - 24
Max. ripple at the output (mV) 150
Monitoring devices voltmeter, ammeter
Operating temperature -40 - +50
Dimensions (mm) 410x150x330 up to 565*225*605
Weight (kg) 26 up to 80
